ExactCables UL1424 Bare Copper Wire 1.5mm 2 Core Shield Fire Cable Fire Rated Cable

Name: ExactCables UL1424 Bare Copper Wire 15mm 2 Core Shield Fire Cable Fire Rated Cable
Brand: ExactCables
Price: 0.05 USD

Quality ExactCables UL1424 Bare Copper Wire 1.5mm 2 Core Shield Fire Cable Fire Rated Cable wholesale

Place of Origin : ZHEJIANG

Brand Name : ExactCables

Model Number : 2x1.5mm2

Application : Industrial

Conductor Material : Copper

Jacket : PVC

Insulation Material : PVC

Shield : Al/Foil

Model NO. : 2x1.5, 2x2.5 fire alarm cable fire resistant cable

Fire : fire alarm, fire resistant

Specification : 2x0.5, 2x1.0, 2x1.5, 2x2.0, 2x2.5

Wire Core Material : Bare Copper Wire

Cable Core : 2cores

Drain Wire : 1/0.5tc mm

ph30 : PH30 PH120 UL1424

Transport Package : Shipping Box or Wooden Pallet

Production Capacity : 5000000000

MOQ : 10000 meters

Price : $0.05/meters >=10000 meters

Contact Now

Product Description

ExactCables UL1424 Bare Copper Wire 1.5mm 2 Core Shield Fire Cable Fire Rated Cable

PRODUCT DESCRIPTION:
* Cables symmetrical,twisted pair,with single copper conductor cross-section from 0,2 to 2,5mm², with the isolation of fire-resistant silicone rubber sheathed in PVC low flammability with low smoke and gas evolution.The shell is orange.
* Designed for group use,fixed installations in fire protection systems,including fire alarm systems,warning systems and evacuation,automatic fire extinguishing systems,smoke protection systems,as well as in other important life-support systems,which should keep working in a fire;used indoors and out doors.
* Cables KPSng-FRLS should have a low smoke and gas evolution,having a class of fire danger P1.1.2.2.2 in accordance with Russian standards R 53315-2009.Cables must meet the regulatory requirements of the Technical Regulations on fire safety,including established in Russian standard R 53315-2009 p.5.3 PRGP1 (category A combustion-proliferation group laying) p.5.8 to 1(fire-resistance for 180 minutes).

Specification

Part N0.	Description	Conductor Spec.	Insulation			Jacket
Part N0.	Description	Conductor Spec.				Nom Thick. (mm)	Nom Diam (mm)	Nom Thick. (mm)	Nom Diam (mm)
ECFC001		2×0.50mm2	0.5	1.8	0.7	5.2
ECFC002		3×0.50mm2	0.5	1.8	0.7	5.2
ECFC003		2×0.80mm2	0.5	2	0.7	5.4
ECFC004	BC/TC	3×0.80mm2	0.5	2	0.7	5.4
ECFC005	PVC or LSOH	2×1.00mm2	0.6	2.35	0.8	6.5
ECFC006	Insulation Jacket	3×1.00mm2	0.6	2.35	0.8	6.5
ECFC007		2×1.50mm2	0.7	2.8	1	7.8
ECFC008		3×1.50mm2	0.7	2.8	1	7.8
ECFC009		2×2.50mm2	0.8	3.4	1	9
ECFC010		3×2.50mm2	0.8	3.4	1	9

Why Choose Us

We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

QUALITY POLICY:
Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the
above, the Management is committed to the following:
* Maintain the ISO 9001 Quality Management System
* Continual review and improvement of the effectiveness of the Quality Management System
* Provide all necessary resources to manufacture quality cable
* Create a safe and technologically advanced working environment
* Respect for the environment in which we operate
* Training and communication to keep employees informed and involved
Every employee has the responsibility to ensure that these requirements are met.

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!

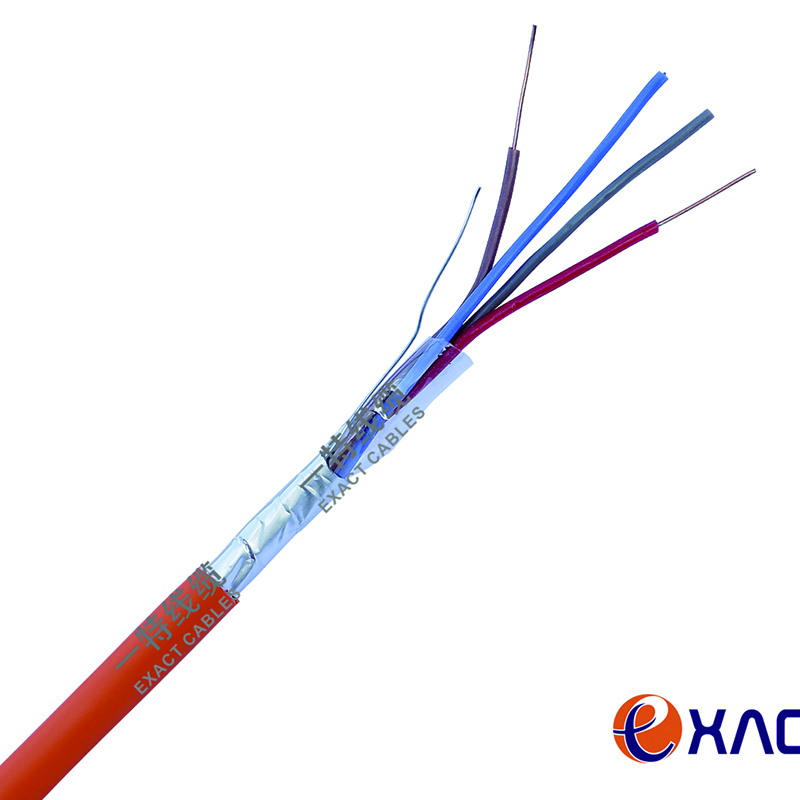

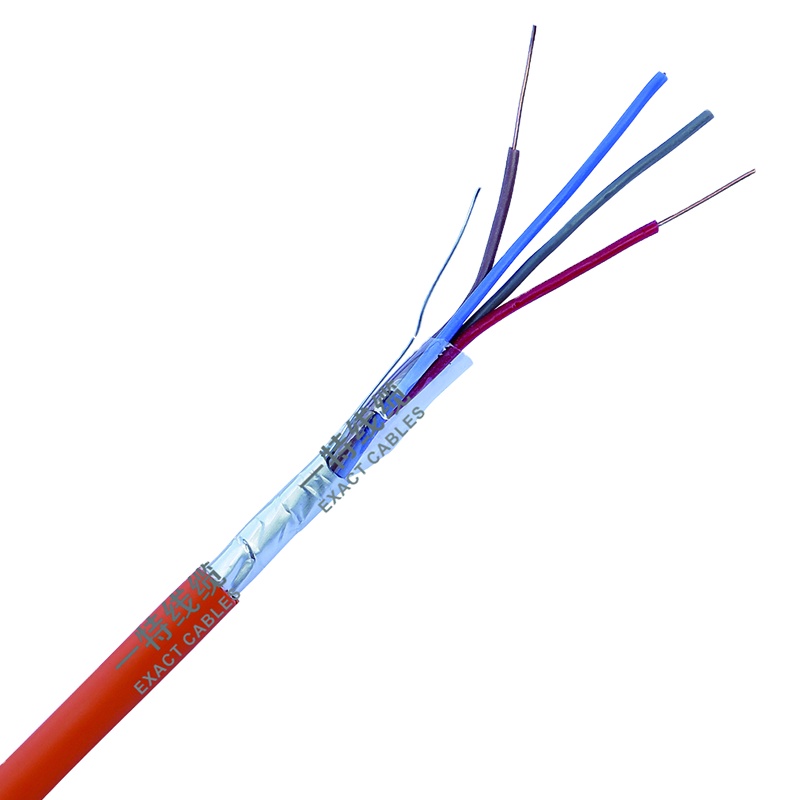

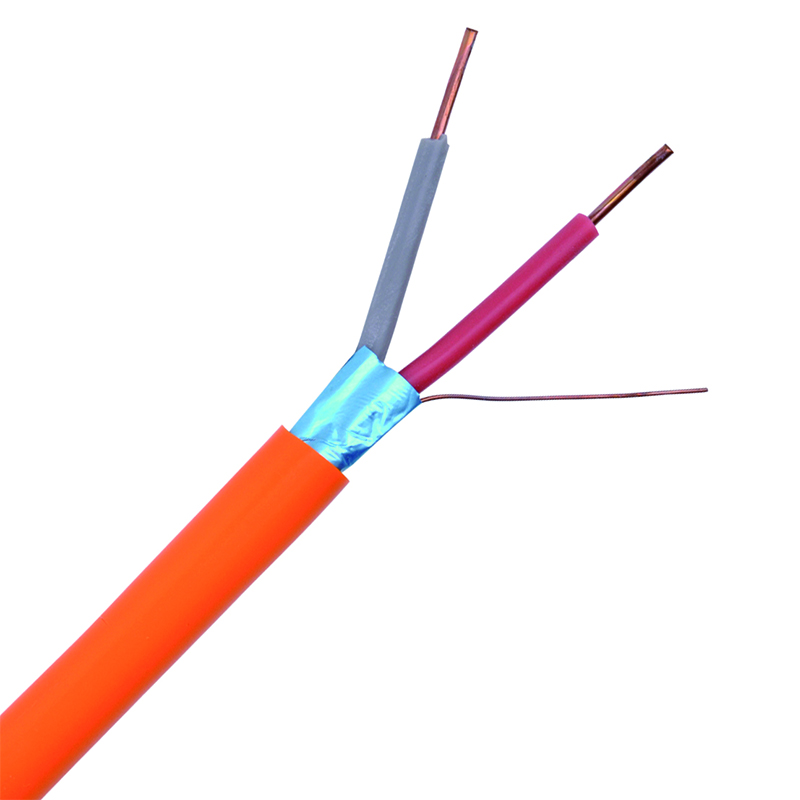

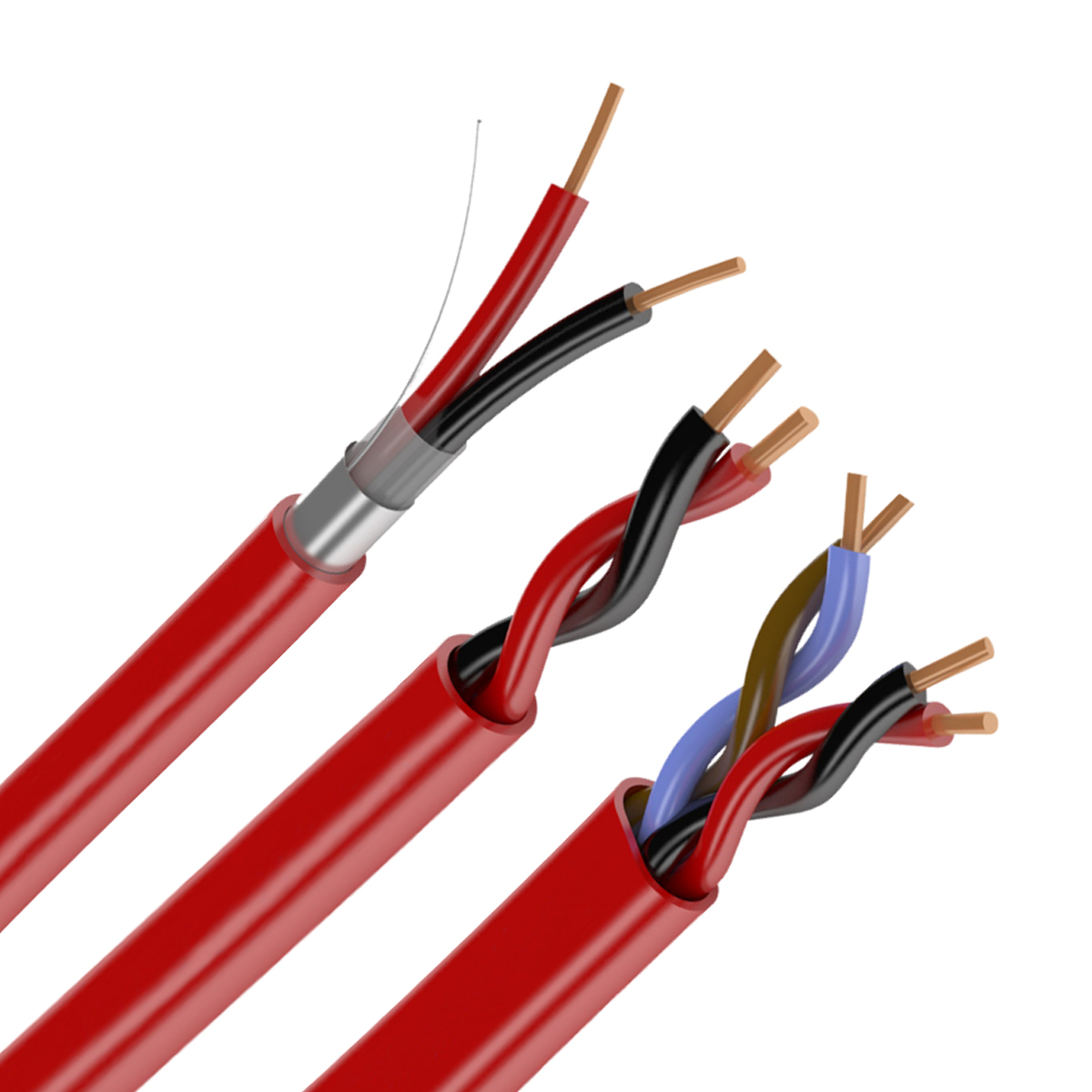

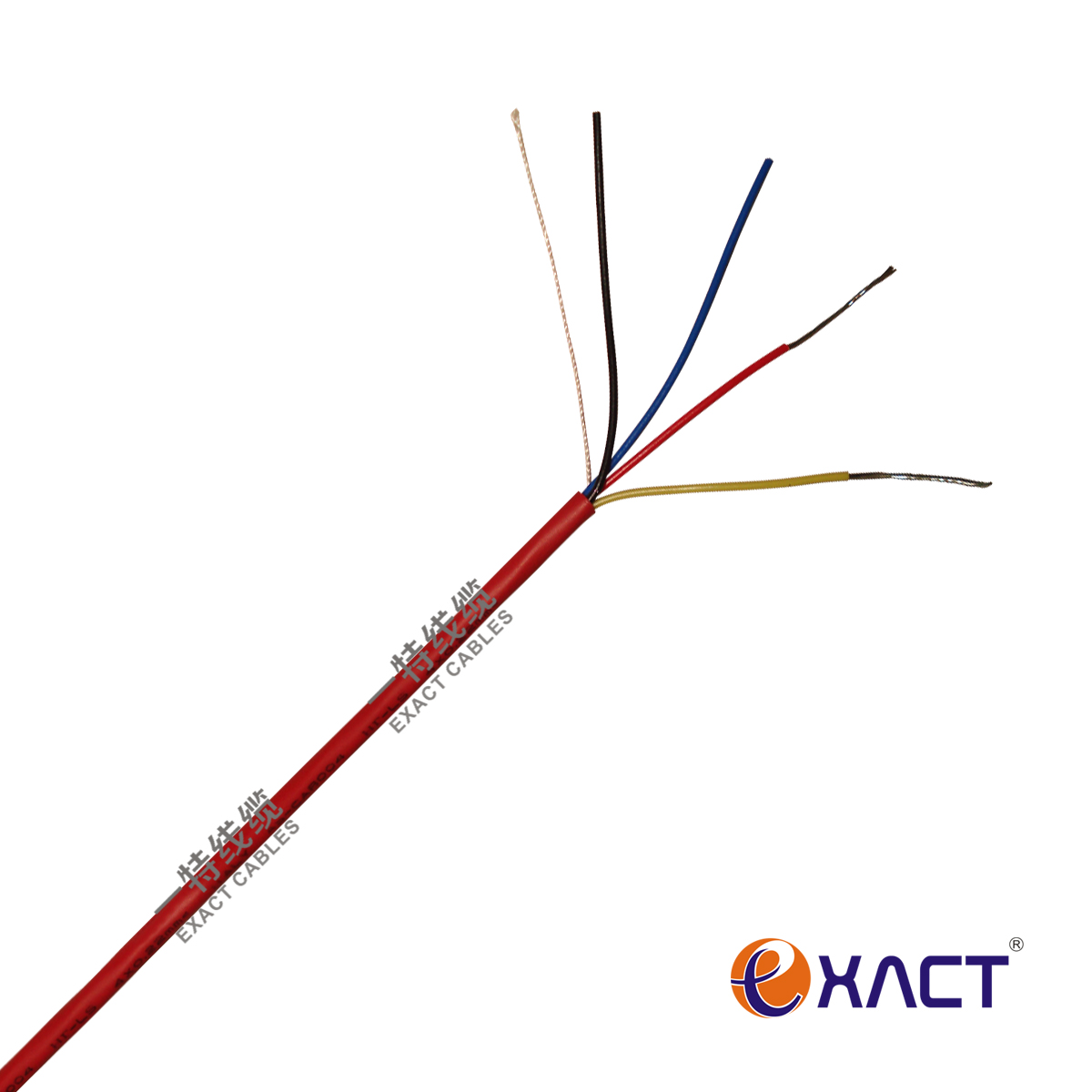

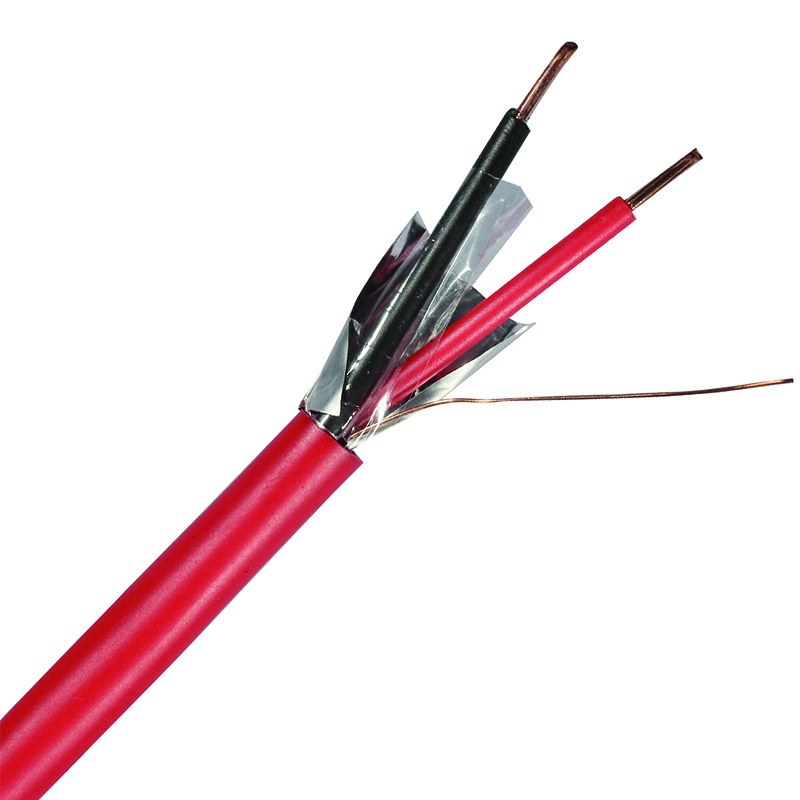

ExactCables UL1424 Bare Copper Wire 1.5mm 2 Core Shield Fire Cable Fire Rated Cable Images
