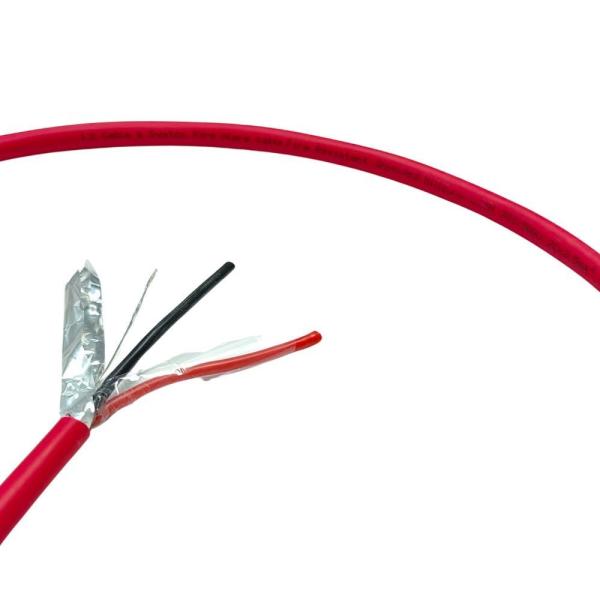

Silicone Fire Resistant Control Cables 2-4 Cores PH30 PH120 300/500V IEC60331-21

Name: Silicone Fire Resistant Control Cables 24 Cores PH30 PH120 300500V IEC6033121
Brand: ExactCables
Price: 0.05 USD

Quality Silicone Fire Resistant Control Cables 2-4 Cores PH30 PH120 300/500V IEC60331-21 wholesale

Model Number : 2x1.5mm2

Type : Fire Alarm Cable

Place of Origin : ZHEJIANG

Brand Name : ExactCables

Number of Conductors : 2

Shield : Al/Foil

Specification : 2x0.5, 2x1.0, 2x1.5, 2x2.0, 2x2.5

Jacket : LSZH

Insulation : Silicone

Cable Core : 2 cores

Drain Wire : 1/0.5tc mm

Certification : CE, RoHS, CCC, CPR

Transport Package : Shipping Box or Wooden Pallet

Production Capacity : 5000000000

Fire Rating : PH30 PH120

MOQ : 1000 meters

Price : $0.05/meters >=1000 meters

Contact Now

Product Description

Silicone Fire Resistant Control Cables 2-4 Cores PH30 PH120 300/500V IEC60331-21

Fire Resistant Cables

Product Introduction of LSZH Shielded Fire Resistant Multi Core Alarm Cable

This LSZH shielded Fire Resistant Alarm cables multi core alarm cable is manufactured with latest technology to ensure consistent quality and reliability. We use good quality ceramifiable silicone rubber insulation and pure copper and LSZH sheath material( LowSmoke Zero Halogen). We use eco-friendly materials,RoHS compliance. This cable intend to assure service during a fire but are chosen to prevent the flame spreading,offer continued functionality of critical systems in the event of fire.

Application :
LSZH sheath Fire Resistant Alarm cables (2 cores or more )often used in building Management Systems(BMS),control and
instrumentation, like voice alarm systems, emergency and escape lighting and other essential service control circuits. Fire
protection system,emergency lights,sprinklers,ventilation devices,smoke alarm,emergency lighting system,fire alarm system.

Specification

No.	Items			Unit	Parameter	Jacket
1	Conductor	Compliance standard		EN50200	Nom Thick. (mm)	Nom Diam (mm)
		Material		Plain annealed copper (Stranded)	0.7	5.2
		Nominal cross sectional area	mm2	2.50 mm2	0.7	5.2
		Max. diameter of wire	mm	0.26	0.7	5.4
		Structure wire in each conductor	No./mm	50/0.24	0.7	5.4
		Nominal conductor diameter	mm	1.96	0.8	6.5
2	Insulation	Compliance standard		EN50200	0.8	6.5
		Material		Silicone Rubber	1	7.8
		Nominal Thickness	mm	0.62	1	7.8
		Min. Thickness	mm	0.59	1	9
		Max. Thickness	mm	0.65	1	9
3	Separator	Material		Transparent Polyester tape
		Thickness	mm	0.025
		Overlap	%	25
4	Drain wire	Material		TC-Tinned copper
		Structure	No./mm	7/0.18
5	Screen	Material		Aluminum Tape
		Thickness	mm	0.035
		Overlap	%	25
		Max. Dia. over Separator & Screen	mm	7
6	Sheath	Material		LSZH
		Nominal Thickness	mm	0.9
		Max. Thickness	mm	0.93
		Max. Dia. over Cable	mm	8.6
7	Working voltage			V	300/500
8	Conductor resistance at 20ºC (Max)			Ω/km	7.7
9	AC Voltage test (No breakdown with)				2KV/5 min
10	Inductance			mh/km	1.52
11	Capacitance (Max)			nF/km	115
12	Operating temperature			ºC	from -60ºC to 180ºC
13	Insulation resistance			GΩ · km	0.0095
14	Max recommended current at 25°C			Ampe	26
15	Minimum bending radius				15xOD

Why Choose Us

We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.

Customer Photos

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
